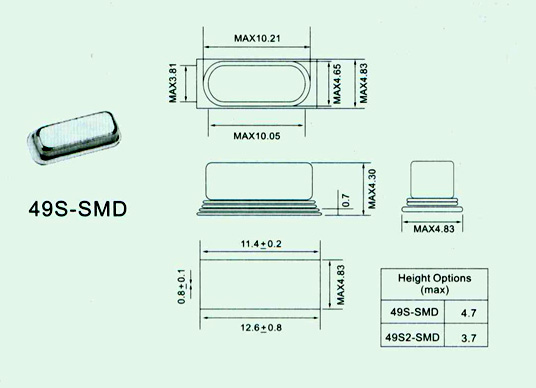

49S-SMD石英晶體 49S-SMD Type Crystal

Frequency Range頻率范圍 3.579545-80.000MHz Load Capacitance負載電容 10pf to Series Frequency Tolerance at 25℃頻率偏差 ±30ppm Maximum Frequency Stability at 20 to+70℃頻率穩定性 ±30ppm Maximum Operating Temperature Range 工作溫度范圍 -10 to +60℃ Storage Temperature range 貯藏溫度范圍 -40 to +85℃ Equivalent Series Resistance (ESR)阻抗 See ESR Table Drive Level驅動功率 1.0 mw Maximum Shunt Capacitance 并電容 7pf Maximum Aging老化率 ±5ppm per year Insulation Resistance絕緣阻抗 500 Mohm Minimum

Frequency Range And Oscillation Mode

Fundamental(F) Third Overtone(3OT) Fifth Overtone(5OT) 3.579545-30.000MHz 24.000-70.000MHz 60.000-80.000MHz

Part Numbering system

Holder Type Frequency Mode Load Capacitance Frequency Tolerance at 25℃ Frequency Stability at 20 to+70℃ 49S-SMD IN Mhz F 3OT 5OT 10 to 33 pf FOR parallel S for series 30for±30ppm 30 for±30ppm 49S2-SMD

Operating Temperature Range Option B For -10 to +60℃ T tape and reel

Fundamental Mode NotNeeded In Part Number 30ppm Of Frequency Tolerance And Frequency Stability Not Needed ln Part Number -10 to +60℃ Of Operating Temperature Range NotNeeded ln Part Number Tape And Reel Not Needed ln Part Number

ESR Table(Ohm)

3.5-4.0MHz 4.0-8.0MHz 8.0-14MHz 14-24MHz 〉24MHz 150 100 60 40 40(F) 80(30T)

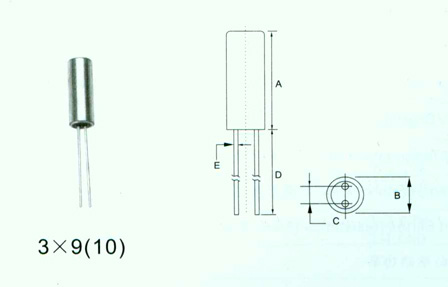

3×9(10) 石英晶體3×9(10) Type Crystal

A B C D E 3×9 9.0 φ3.0 1.1 10.0 φ3.0 3×10 10.0 φ3.0 1.1 10.0 φ3.0

Frequency Range頻率范圍 3.579545-60.000MHz Load Capacitance負載電容 10pf to Series Frequency Tolerance at 25℃頻率偏差 ±30ppm Maximum Frequency Stability at 20 to+70℃頻率穩定性 ±30ppm Maximum Operating Temperature Range 工作溫度范圍 -10 to +60℃ Storage Temperature range 貯藏溫度范圍 -40 to +85℃ Equivalent Series Resistance (ESR)阻抗 See ESR Table Drive Level驅動功率 1.0 mw Maximum Shunt Capacitance 并電容 7pf Maximum Aging老化率 ±5ppm per year Insulation Resistance絕緣阻抗 500 Mohm Minimum

Frequency Range and Oscillation mode

Fundamental(F) Third Overtone(3OT) 3.579545-30.000MHz 24.000-60.000MHz

Part Numbering system

Holder Type Frequency Mode Load Capacitance Frequency Tolerance at 25℃ Frequency Stability at 20 to+70℃ 3×9(10) IN Mhz F 3OT 10 to 33 pf FOR parallel S for series 30for±30ppm 30 for±30ppm

Operating Temperature Range B For -10 to +60℃

Fundamental Mode NotNeeded In Part Number 30ppm Of Frequency Tolerance And Frequency Stability Not Needed ln Part Number -10 to +60℃ Of Operating Temperature Range NotNeeded ln Part Number

ESR Table(Ohm)

3.5-4.0MHz 4.0-8.0MHz 8.0-14MHz 14-24MHz 〉24MHz 150 100 60 40 40(F) 80(30T)

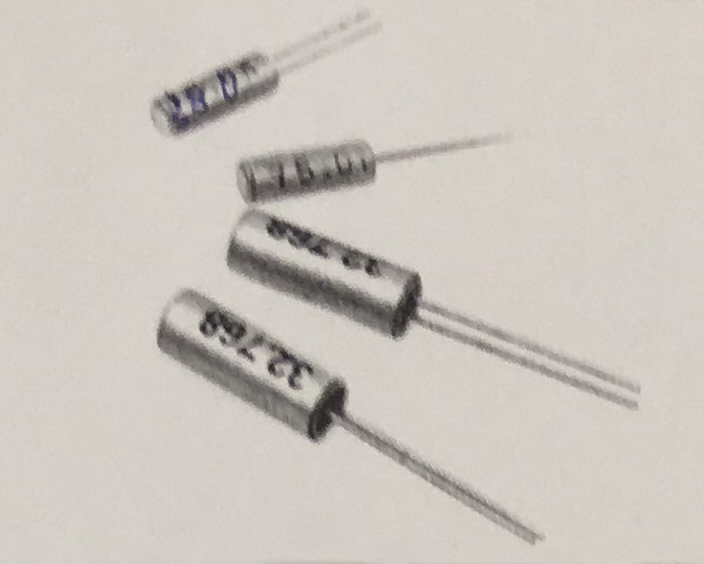

音叉晶體諧振器

這類音叉晶體諧振器具有體積小、功耗小、優良的抗震性，廣泛用于各種電子鐘，各種電話，游藝機系統。

This kind of tuning fork crystal has small compaoct size,performance and economy,excellent shock and environmental characteristics.It is widely used in electronic clocks,kind of telephones,game systems.

TECHNICAL CHARACTERISTICS 技術特性

*1、常用的頻點有：38.00KHz，40.00KHz，50.00KHz，60.003KHz，75.00KHz，76.80KHz，77.503KHz，100.00KHz。

2、負載電容可由客戶指定。

1、Common frequencies are:38.00KHz,40.00KHz,50.00KHz,60.003KHz,75.00KHz,76.80KHz,77.503KHz,100.00KHz.

2、Other load capacitances are available.

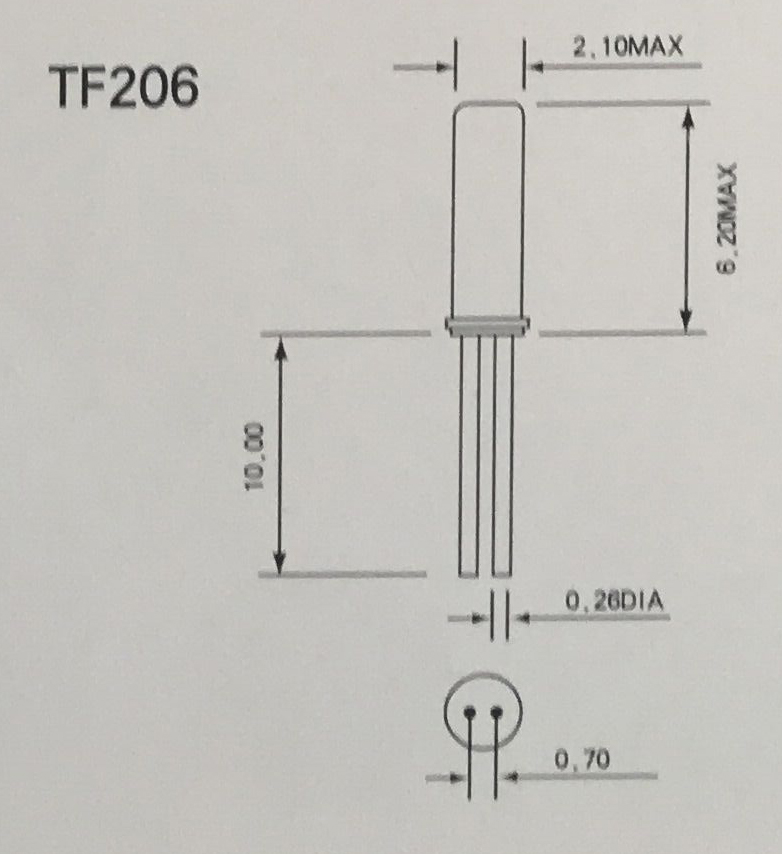

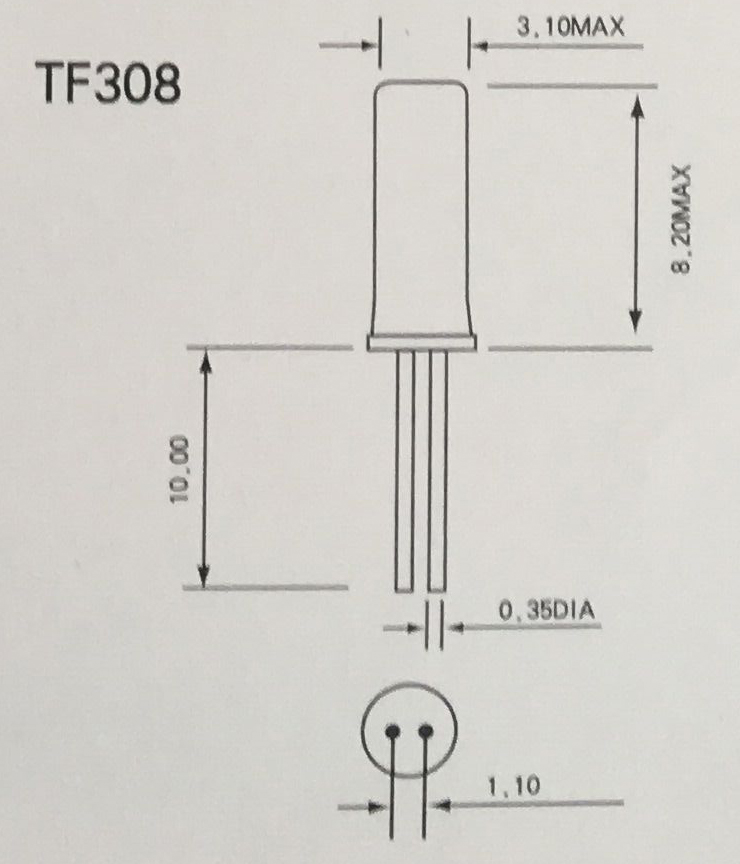

DIMENSIONS(mm) 外形尺寸
