Cermic Resonalor
Cermic Resonalor
ZTB Series of Ceramic Resonator


TECHNICAL CHARACRERISTICS

Part Number Frequency Accurancy Resonant Impedance (Ω) Stability in Temperature (-20~+80℃) Aging For Ten Years Load Capacitance
ZTB190-249D ±1KHz ≤20 ±0.3% ±0.3% 330 470
ZTB250-374D ±1KHz ≤20 ±0.3% ±0.3% 220 470
ZTB375-429D ±2KHz ≤20 ±0.3% ±0.3% 120 470
ZTB430-509D ±2KHz ≤20 ±0.3% ±0.3% 100 100
ZTB510-699D ±2KHz ≤30 ±0.3% ±0.3% 100 100
ZTB700-1250J ±0.5% ≤50 ±0.3% ±0.3% 100 100
ZTB500F2 ±2KHz ≤20 ±0.3% ±0.3% - -
ZTB503F2 ±2KHz ≤20 ±0.3% ±0.3% - -
Frequency Accurancy
(KHz) 		Width
(mm) 		Thickess
(mm) 		Height
(mm)

Lead Space
(mm)

Lead Length
(mm)
190-249 13.5 3.8 14.7 10.0 8.0
250-374 11.0 3.8 12.2 7.7 7.0
375-429 7.9 3.6 9.3 5.0 4.0
435-699 7.0 3.5 9.0 5.0 4.0
700-1250 5.2 2.8 6.8 2.5 3.5

CHARACTERISTICS


ZTB Series Surface Mountable Ceramic Resonator


TECHNICAL CHARACRERISTICS

Part Number Frequency Accurancy Resonant Impedance (Ω) Stability in Temperature (-20~+80℃) Aging For Ten Years Load Capacitance
ZTB375-429Y ±2KHz ≤20 ±0.3% ±0.3% 120 470
ZTB430-509Y ±2KHz ≤20 ±0.3% ±0.3% 100 100
ZTB510-699Y ±2KHz ≤30 ±0.3% ±0.3% 100 100
ZTB700-999Y ±0.5% ≤70 ±0.3% ±0.3% 100 100
ZTB1000-1250Y ±0.5% ≤100 ±0.3% ±0.3% 100 100

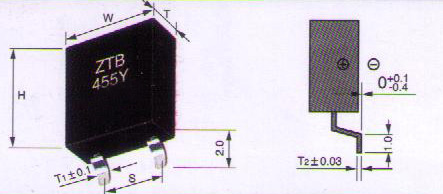

Frequency Accurancy
(KHz) 		Width
(mm) 		Thickess
(mm) 		Height
(mm)

Lead Space
(mm)

T1 T2
375-429 8.0 3.5 9.0 5.0 1.1 0.15
430-509 7.5 3.3 8.5 5.0 1.1 0.15
510-699 7.0 3.0 8.5 5.0 1.1 0.15
700-1250 5.0 2.2 6.0 2.5 0.8 0.12


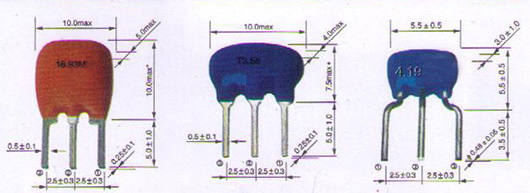

ZTT Series of Ceramic Resonator With Built-in Load Capacitor

① Input

②Groud

③Output

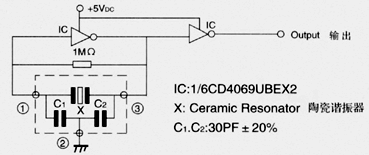

TEST CIRCUIT FOR MOSIC



TECHNICAL CHARACRERISTICS

Part Number Frequency accurancy

Stability in Temperature
(-20~+80℃)

Aging for ten years
ZTT2.00~5.00MG ±0.5% ±0.3% ±0.3%
ZTT5.00~13.00MG ±0.5% ±0.3% ±0.3%
ZTT13.01~25.99MG ±0.5% ±0.3% ±0.3%

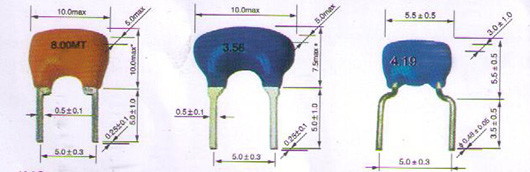

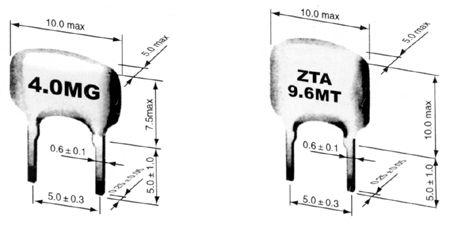

ZTA Series of Ceramic Resonator




TECHNICAL CHARACRERISTICS

Part Number Frequency Range
(MHz) 		Frequency Accurancy
(25℃) 		Stability in Temperature
(-20-80℃)

Operating Temperature
(℃)

Aging For Ten Years
ZTA□□□MG 2.00-5.00 ±0.5% ±0.3% -20~+80 ±0.3%
ZTA□□□MT 5.00-13.00 ±0.5% ±0.3% -20~+80 ±0.3%
ZTA□□□MX040 12.00-40.00 ±0.5% ±0.3% -20~+80 ±0.3%


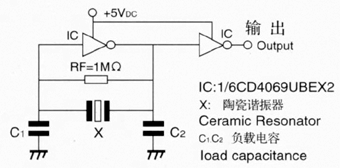

TEST CIRCUIT

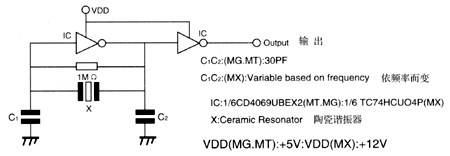

Part Number Frequency Range Circuit Constants
C1(PF) C2(PF)
ZTA□□□MX040 13.01-19.99 30 30
20.00-25.99 15 15
20.00-40.00 5 5
